THE “WORKHORSES” OF THE BLOW MOLDING INDUSTRY

H-111
Double Station Machine

H-111 Technical Data:

  • Clamp Force: 31 kN / 3.4 t
  • Dry Cycle: 1.8 sec
  • Maximum Article Capacity:
    • 2 Cavities: 3 L
  • Standard Center Line Distances:
    • 4 Cavities: 100 mm
    • 6 Cavities: 60 mm

H-111S
Single Station Machine

H-111S Technical Data:

  • Clamp Force: 31 kN / 3.4 t
  • Dry Cycle: 1.8 sec
  • Maximum Article Capacity:
    • 1 Cavity: 3 L
  • Standard Center Line Distances:
    • 2 Cavities: 100 mm
    • 3 Cavities: 60 mm

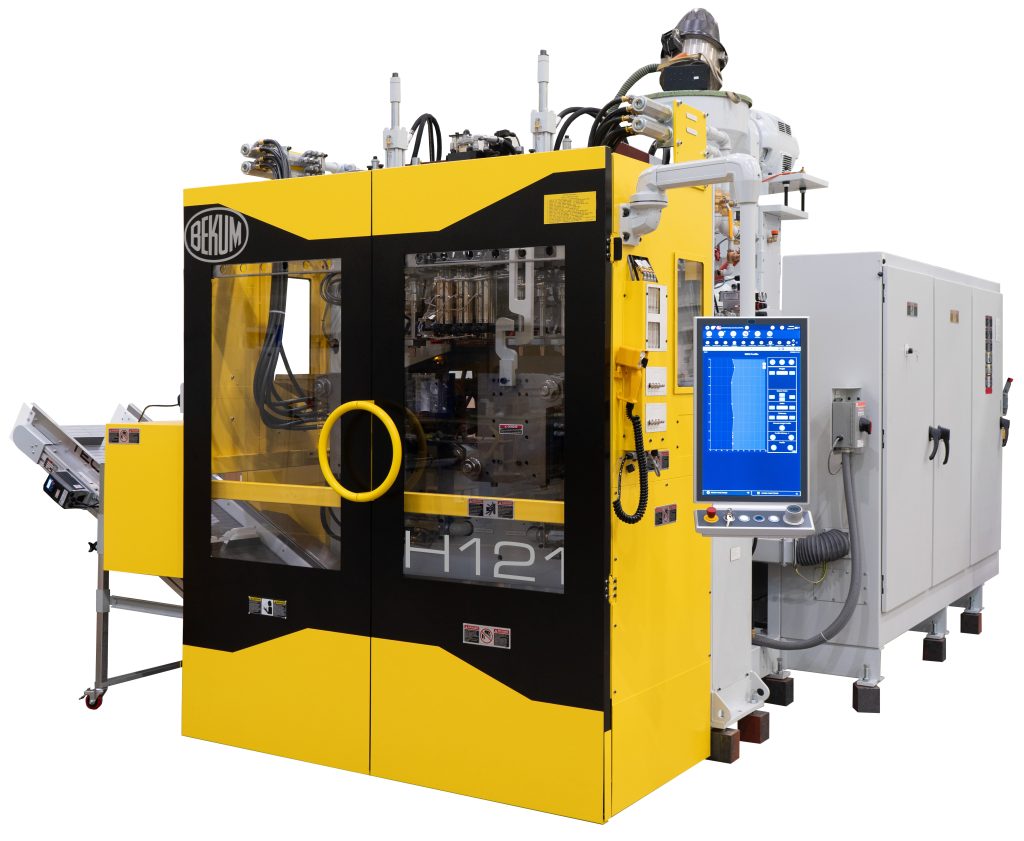

H-121
Double Station Machine

H-121 Technical Data:

  • Clamp Force: 70 kN / 7.8 t
  • Dry Cycle: 1.7 sec
  • Maximum Article Capacity:
    • 2 Cavities: 5 L
  • Standard Center Line Distances:
    • 4 Cavities: 125/140 mm
    • 6 Cavities: 85/100 mm
    • 8 Cavities: 70 mm
    • 10 Cavities: 60 mm
    • 12 Cavities: 50 mm

H-121S
Single Station Machine

H-121S Technical Data:

  • Clamp Force: 70 kN / 7.8 t
  • Dry Cycle: 1.7 sec
  • Maximum Article Capacity:
    • 1 Cavity: 5 L
  • Standard Center Line Distances:
    • 2 Cavities: 125/140 mm
    • 3 Cavities: 85/100 mm
    • 4 Cavities: 70 mm

H-155
Double Station Machine

H-155 Technical Data:

  • Clamp Force: 100 kN / 11.2 t
  • Dry Cycle: 2.2 sec
  • Maximum Article Capacity:
    • 2 Cavities: 8 L
  • Standard Center Line Distances:
    • 4 Cavities: 215 mm
    • 6 Cavities: 125 mm
    • 8 Cavities: 100 mm
    • 10 Cavities: 80 mm
    • 12 Cavities: 70 mm
    • 16 Cavities: 50 mm
